8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory

  • 8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
  • 8 Inch Screen Esd Tester With Wrist Strap Footwear Anti-static Tester For Lab and Factory
Menşe yeri GuangDong, Çin
Marka adı Goldantell
Sertifika CE/ROHS/FCC/IS9001
Model numarası GAT-ESD305
Min sipariş miktarı 1 adet
Fiyat Anlaşılabilir
Ambalaj bilgileri Önce kartonda paketlenir ve daha sonra dış ambalaj için ihracat tahta sandık ile güçlendirilir
Teslim süresi Ödemenizi aldıktan sonra 7-9 iş günü
Ödeme koşulları T/T, western Union, LC, Paypal
Yetenek temini ayda 2.000 adet
Ürün ayrıntıları
Uyumlu Tripod Turnike Kapısı, Flap Turnike Kapısı, Salıncak Turnike Kapısı Ürün adı ESD Test Ekipmanı
Malzeme Paslanmaz çelik Ürünün boyutu 1200*300*1000mm
Paket boyutu 1310*410*1110mm Başvuru İç ve Dış Mekan
Net ağırlığı 70 kg/pc Brüt ağırlık 65 kg/adet
İletişim portu RS485,TCP/IP
Vurgulamak

8 inch ESD tester with wrist strap

,

footwear anti-static tester for lab

,

ESD gate tester for factory
Mesaj bırakın
Ürün Açıklaması

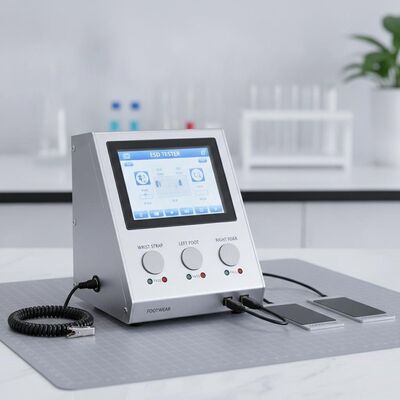

8 Inch Screen ESD Tester with Wrist Strap & Footwear Anti-static Testing
Professional ESD testing equipment designed for laboratories and manufacturing facilities, featuring comprehensive anti-static testing capabilities for personnel safety and product protection.
Technical Specifications
Parameter Specification
Instrument Dimensions 8 inch LCD monitor with built-in tablet PC displaying user information including photo, name, card ID, department, and entry time
Pedal Size 400mm (W) × 420mm (L) × 20mm (H)
Operating Voltage Input AC220V, Output DC12V
Working Hours Unlimited continuous operation
Environmental Conditions Humidity: 0%–90%, Temperature: 5°C–40°C
Data Storage Automatic record storage for ESD test data (except client mode), capacity for 100,000+ records
Test Range & Accuracy Left shoe: 0.01–1000MΩ (±5%) | Right shoe: 0.01–1000MΩ (±5%) | Wrist-strap: 0.1–35MΩ (±5%)
GAT-ESD305 ESD Tester unit display and interface
Key Features
This ESD tester supports online data saving, signal output, 8-inch display monitor, includes related software, testing functionality, voice prompts (optional), and employee card access control integration.
  • Rapid testing capability with simultaneous testing of three independent devices (left shoe, right shoe, wrist strap)
  • Compatible with SQL Server 2000/2008 - run access control management software on any company computer
  • TCP/IP communication technology supports connection of up to 255 testing devices for real-time monitoring of anti-static compliance
ESD Tester Configuration Types

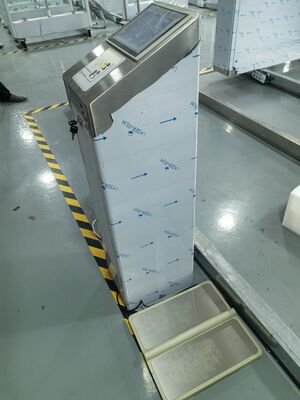

Type 1 - Vertical Standalone Unit
Operates independently without requiring installation on turnstile gates.
Vertical standalone ESD tester unit Close-up view of ESD tester interface and controls
Type 2 - Turnstile Gate Integration
Designed for installation directly on turnstile gate systems.

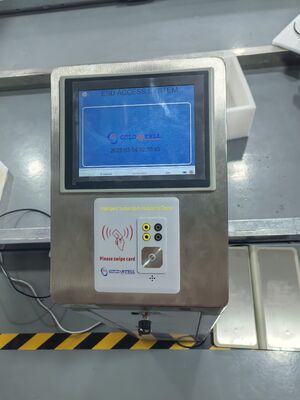

ESD tester integrated with turnstile gate system
Industry Applications
  • Electronics Manufacturing: Semiconductor/chip production, electronics assembly, cleanrooms
  • Healthcare: Medical device manufacturing, operating rooms, laboratories
  • Oil & Gas/Chemicals: Flammable environments including storage and maintenance areas
  • Precision Labs: Microelectronics R&D, optical labs, reliability testing facilities
  • Industrial Logistics: Printing/packaging operations, warehouse management
  • Access Control: Integrated gate systems with real-time monitoring capabilities
Core Features & Advantages
Precision Measurement
Measures charge and polarity with ±10% error tolerance, supports multi-point testing for shoes and wrist straps
Real-Time Protection
Alarm system for excessive static electricity, integrates with grounding systems and ionizers
Flexible Configuration
Customizable thresholds (e.g., 750KΩ–100MΩ), supports standalone or networked operation
Advanced Data Management
Comprehensive logging and reporting for audits, remote monitoring via TCP/IP connectivity

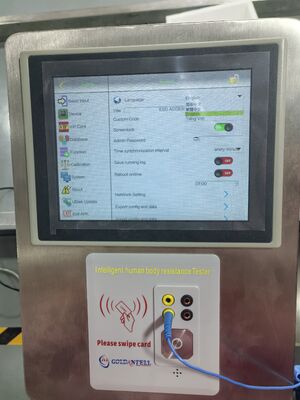

ESD tester data management and monitoring interface
Packaging
Protected with inner carton packaging and outer crate or closed wooden packaging for secure transportation.
ESD tester packaging and shipping configuration
