xÜrün ayrıntıları
| Erişim Kontrol Türü | RFID Kart, ESD Sistemi, Yüz Tanıma | Bariyer açık/kapanış saati | 0,2 sn |
|---|---|---|---|
| İletişim Arayüzü | RS-232, RS485, TCP/IP | Çalışma yönü | 2 Yollu |
| bariyer motoru | fırçasız motor | Koruma Seviyesi | IP54 |
| Kızılötesi sensör | 4-6 çift | Motor voltajı | 24V DC |
| Güç kaynağı | 100-240V(AC) | geçiş hızı | 35PERSONS/MIN |
| Dolap boyutu | 1400*120*1000mm | Geçiş genişliği | 550-600mm |
| MCBF | 10 Milyon Kez | Çalışma Nemi | %30~%95 |
| Kol malzemesi | 10mm akrilik, temperli cam veya çelik | ||
| Vurgulamak | automatic swing barrier gate,smart hotel access control turnstile,remote control entrance baffle gate |
||
Ürün Açıklaması

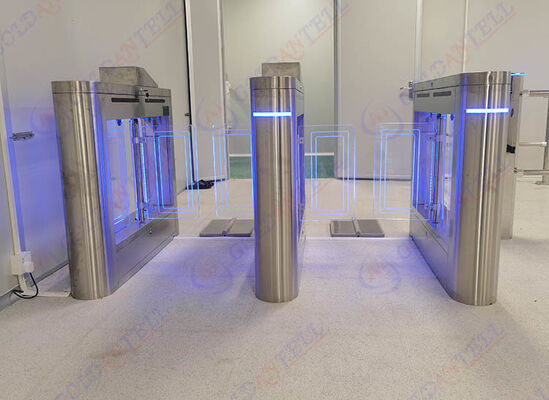

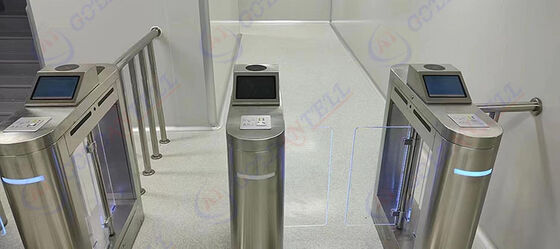

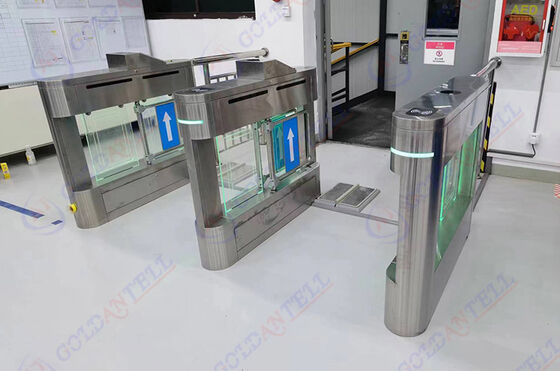

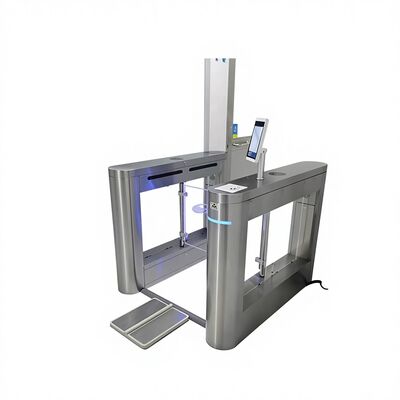

Automatic Swing Barrier Turnstile
High-performance optical turnstile designed for controlling pedestrian access in high-traffic environments with sleek, modern aesthetics suitable for upscale business and institutional settings.
Key Features
- Controls pedestrian entry/exit in restricted areas with high traffic flow
- Sleek design with minimal footprint for premium environments
- Prevents unauthorized access while allowing emergency release
- Wide passage design with clear, bi-directional swinging panels
- Integrated fire control interface for emergency rapid deployment
Technical Specifications
| Specification | Details |
|---|---|
| Cabinet Dimension | 1400 (L) x 200 (W) x 1000 (H) mm |
| Cabinet Material | 304 stainless steel (316 ss can be custom-made) |
| Power Supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Opening/Closing Time | 0.2s |
| Arm Material | 10mm Acrylic, tempered glass, or steel (customizable) |
| Access Mode | Single in/out or Bidirectional |
| Passthrough Width | 900mm (or custom) |
| Mechanism | DC Brushed motor + Clutch (or Servo motor) |
| Communication Interface | RS485, TCP/IP |
| Infrared Sensor | 6~10 pairs |
| Optimal Flow Rate | 40 persons/min (open), 35 persons/min (closed) |
| Reset Time After Break Down | Default 10s (adjustable) |
| MCBF | 5,000,000 Cycles |
| Working Humidity | 30%~95% |
Standard Functions & Features
- Normal open/close control via external button (for group passage)
- Automatic gate opening during power failure for fire safety compliance
- Infrared logical judgment with 8-10 pairs of sensors
- Voice prompt functionality
- Extendable box housing and retractable arms for project flexibility
- Triple anti-clamping protection: infrared, mechanical, and current detection
- Industrial-grade PC flap for maximum durability
Project Customization Options
- Single or multiple passage configurations
- Arm colors: Standard Blue, Red, Black, Transparent (with optional LED lighting)
- Two-way access with RFID, fingerprint, barcode scanner, ESD tester, or custom readers
Manufacturer Profile
Shenzhen Goldantell Technology Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile systems, access control, and parking management products since 2007. We offer comprehensive OEM services and custom product development.
Internal Components
Our Services & Strengths
- Professional design team for OEM and ODM services
- CE certified with extensive European government project experience
- Experienced sales team with over 4 years in turnstile industry
- Competitive pricing with high-quality standards and reliable after-sales support
- Custom product development and complete access control system solutions
Frequently Asked Questions
Warranty Period: One-year guarantee & Lifetime technical support
Payment Methods: T/T, Western Union, LC, PayPal (terms negotiable based on order value)
Factory Visits: Welcome at any time
Minimum Order Quantity: Any quantity acceptable
Pre-sale & After-sale Services
- Pre-sale: Comprehensive communication and product information
- On-purchase: Regular production updates with photos and testing videos
- After-sale: Detailed installation guides, manuals, and instructional videos
- OEM/ODM: Over 10 years of customization experience for logos, sizes, and colors
- Professional Support: 16-hour response time for all inquiries
