Compact 304 Stainless Steel Swing Barrier Gate with 0.2s Open/Close Time and RS485 Communication
| Menşe yeri | Guangdong, Çin |
|---|---|
| Marka adı | Goldantell/OEM |
| Sertifika | CE/ROHS/FCC/IS9001 |
| Model numarası | Gat-Custom Serisi |
| Min sipariş miktarı | 1 |
| Fiyat | $728-1,633 |
| Ambalaj bilgileri | Önce kartonda paketlenir ve daha sonra dış ambalaj için ihracat tahta sandık ile güçlendirilir |
| Teslim süresi | Ödemenizi aldıktan sonra 7-10 iş günü |
| Ödeme koşulları | L/C,T/T,Western Union |
| Yetenek temini | Ödemenizi aldıktan sonra 7-9 iş günü |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Erişim Kontrolü | QR Kodu, IC Kartı | Aç/Kapatma Saati | 0,2 sn |
|---|---|---|---|
| İletişim Arayüzü | RS-232, RS485, TCP/IP | Çalışma yönü | 2 yönlü |
| Motorlu Tip | Fırçasız motor | Boyut | 1400x180x1000 mm |
| Ekran Tipi | LCD ekran | şerit genişliği | 55-130cm |
| Güç Kaynağı | AC 110~240V 50/60Hz | Kol malzemesi | 10mm akrilik |
| Geçit genişliği | 900 mm | Kızılötesi sensörler | 6-10 çift |
| Akış hızı | 40 kişi/dk (açık), 35 kişi/dk (kapalı) | MCBF | 5.000.000 döngü |
| Çalışma nemi | %30~%95 | ||
| Vurgulamak | 0.2s Open/Close Time Swing Barrier Gate,304 Stainless Steel Speed Gate,RS485 Communication Security Turnstile Gate |
||
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Ürün Açıklaması
Smallest Quick Pass Gate CE Certification DC Brushless Motor Swing Barrier Gate Speed Gate
Brief Description Of Barrier Gate
- Application: outdoor or indoor
- LED indicator light: green and red indicate the passing information
- Glass panel slides open horizontally to provide an unobstructed passageway
- Safety: Gate auto opens when power is off to meet fire protection requirements
- Custom: Visible high glass panel prevents climbing over the gate for unauthorized access
- Standard external electrical interface compatible with various reading/writing devices for easy system integration
Specification Of Barrier Gate
| 1 | Cabinet dimension | 1400 (L) x 180 (W) x 1000 (H) mm |
|---|---|---|
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | Opening/closing time | 0.2s |
| 5 | Arm material | Thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | Single in/out or Bidirectional |
| 7 | Passthrough Width | 900mm (or custom) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | Default 10s can be changed to fit different demands |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Security Features Of Barrier Gate
- Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.
- Bi-directional or single way optional
- Gate auto-open when power is off to meet fire protection requirements
- Anti-Tail gaiting feature built in to prevent unauthorized access
- The wings open automatically during power interruption, and recover N/C mode after power on (optional)
- Fast opening and closing time
- Built-in mechanical lock to prevent forced opening of swing flaps
- Pairs of IR sensors
Classification Of Barrier Gate
Vertical shape
Bridge shape: this model

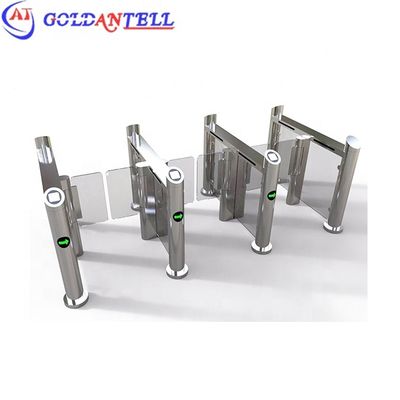

Pillar shape (or tube type)
Single motor and Double motor: single motor (suitable for single passageway and multiple passageway); Double motors (suitable for multiple passageways).
Bridge shape: this model
Pillar shape (or tube type)
Single motor and Double motor: single motor (suitable for single passageway and multiple passageway); Double motors (suitable for multiple passageways).

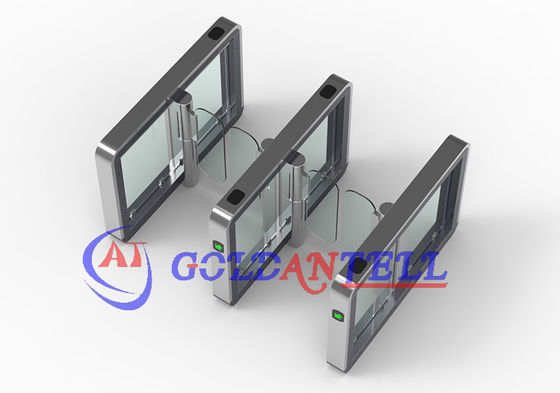

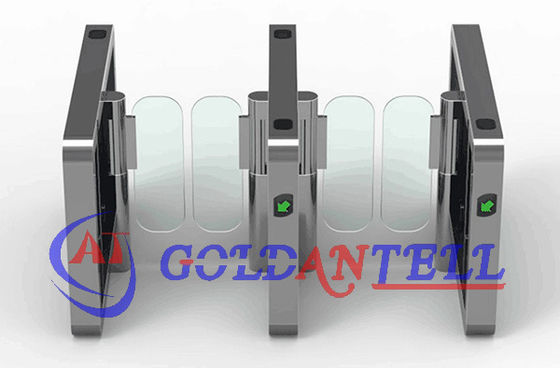

Product Display

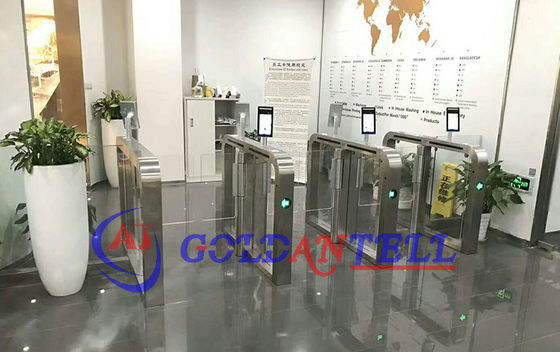

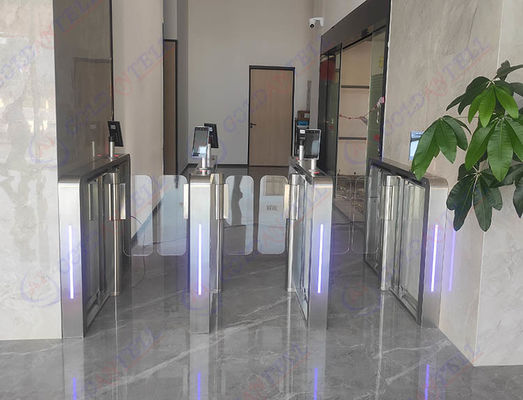

Project Sites
Bank, Fitness Gym, Factory, Hotel, Movie theaters, Office buildings
FAQ Of Barrier Gate
1. Can I have a system that only supports ESD test without software?
Vivian: sure, there are more options. Our catalog can provide to help you make a choice.
2. What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
3. Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available as well.
4. Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
5. What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
6. What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
Packing Details Of Barrier Gate
1. Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
2. Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
3. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
2. Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
3. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
