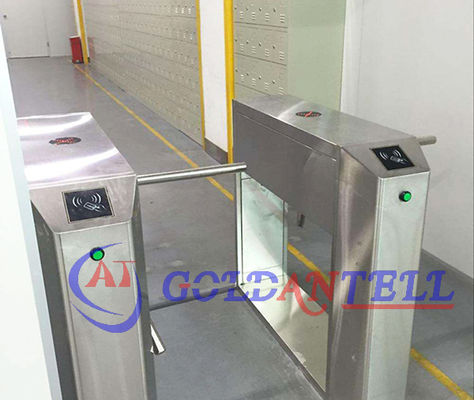

304 Stainless Steel Turnstile Access Control with 0.4s Barrier Open/Close Time and RS485 Communication for 30-40 Persons/Min
| Menşe yeri | Guangdong, Çin |
|---|---|
| Marka adı | Goldantell/OEM |
| Model numarası | GAT-305 |
| Min sipariş miktarı | 1 |
| Fiyat | $253-788 |
| Ambalaj bilgileri | Önce kartonda paketlenir ve daha sonra dış ambalaj için ihracat tahta sandık ile güçlendirilir |
| Teslim süresi | Ödemenizi aldıktan sonra 3-9 iş günü |
| Ödeme koşulları | L/C,T/T,Western Union |
| Yetenek temini | Ayda 1.000 pc |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Erişim Kontrol Türü | RFID Kart, Yüz Tanıma | Bariyer açık zamanı | 0,4 sn |
|---|---|---|---|
| İletişim Arayüzü | RS-232, Rs485 | Çalışma yönü | 1 yönlü |
| bariyer motoru | Fırçalanmış motor | Turnike işlevi | Çarpışmalardan Kaçınma |
| Boyut | 1200*280*1000mm | Malzeme | 304 Paslanmaz Çelik |
| geçiş hızı | 30-40 kişi/dk | Kol uzunluğu | 51cm |
| Güç Kaynağı | 110~240 V(AC) | Geçit genişliği | <=600mm |
| Açılış saati | 1-2 saniye | Çalışma Sıcaklığı | -15°C~+75°C |
| Koruma sınıfı | IP54 | ||
| Vurgulamak | 0.4s Barrier Turnstile Access Control,RS485 Communication Turnstile Gate,30-40 Persons/Min Security Turnstile |
||
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Ürün Açıklaması
Security 304 Stainless Steel Turnstile Access Control for Gym
Technical Parameters
| 1 | Power | AC220±10%V, 50/60 HZ |
| 2 | Operating temperature | -15°C~+75°C |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Arm length | 51cm |
| 5 | Passing Speed | 30~40 persons/min(IC Card) |
| 6 | Motor | 0.5NM/24V(Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard. |
| 9 | Material | SUS304, thickness is no less than 1.3mm |
| 10 | Protection Grade | IP54 |
| 11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
Standard Functions & Features
| Feature | Fully Automatic | Semi Automatic | Manual Operation |
|---|---|---|---|
| Alarm function when arms are pushed by force illegally | √ | × | × |
| Setting working condition by press button | √ | √ | × |
| Auto-lift-arm function when power is on | Auto-lift-arm | Auto-lift-arm | NO action |
| Auto-drop-arm function when power is off | Auto-drop-arm | Auto-drop-arm | NO action |
| Automatic Reset Functions (1~60s adjustable) | √ | √ | × |
| Works with various access control systems | √ | √ | × |
| Arms rotate automatically when open signal given | √ | √ | × |
| LED indicator light | √ | √ | × |
| Pedestrian action required | Automatic-rotation | Manual push the arm | Manual push the arm |
| Bidirectional operation | √ | √ | × |
| Remote management capability | √ | √ | × |
| LED counting function | √ | √ | × |

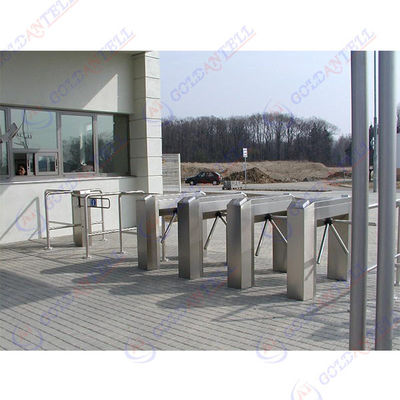

Operation Places
Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise's Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control.
Packaging Options
Inside with a carton package. Then outside, there are 2 kinds of packages under your choice: crate package and closed wooden package.
About Us
Our Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years' experience.
Our main products include intelligent turnstiles, parking barrier, RFID card, sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Certifications
We have CE certificate, SGS certificate, IS9001 certificate, etc.
Global Customers
We have sold turnstiles to more than 50 countries, like Brazil, Chile, Pure, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, German, Portugal, Philippines, Vietnam, Singapore, Malasia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar and so on.
Frequently Asked Questions
1. Can you install RFID card reader on the turnstile?
Yes, except the RFID card reader system, we also can install fingerprint reader system, token system, esd system, etc.
2. How about the guarantee and after sale service?
We have 12 month quality guarantee. We own well-trained and passional sales & after-sale services who can speak fluent English language.
3. How long is the leading time?
For standard item:
10-50 sets: 5 working days
50-100 sets: 7-10 working days
200-500 sets: 10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4. How about the payment terms?
TT, western union, L/C. Our company already joined the trade assurance, it will highly protect your order security.
5. How do you send the product to me, how long?
For sample, normally send by air or express, about 3-5 days.
For quantity purchase, normally by sea, it normally takes 7-60 days depend on different countries.
6. Can you do OEM service?
We offer below OEM services:
1) We can make custom design turnstile, or you tell me your requirements, we can make a design for you.
2) Can print your logo on turnstiles, can customize the retail box packing and other things.
Our Pre-sale & After-sale Service
- Pre-sale service: good communication to better understanding of your demand, advance provide product full info.
- On-purchase service: keep updating the production process to you, send clear photos and testing video before shipment.
- After-sale service: offer you the instruction, manual or detailed video to guide you quickly install and use the product.
- OEM/ODM service: More than 10 years powerful ODM/OEM ability, customize logo, product size, color, etc.
- Professional service: 16 hours online or off-line prompt response to your inquiry.
