IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate

  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
  • IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate
Menşe yeri Guangdong, Çin
Marka adı Goldantell
Model numarası GAT-660
Min sipariş miktarı 2
Fiyat $855-1,205

Ücretsiz numuneler ve kuponlar için bana ulaşın.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Akış hızları Dakikada 35 veya 40 kişi Kayma hızı 0,6 Saniye
Güç kaynağı AC 100-240Volt IP derecesi IP54
şerit genişliği 600mm (maks: 900mm) Boyut 1200 * 300 * 1000 (mm)
Malzeme 304, 316 Paslanmaz çelik kanat malzemesi Akrilik
İletişim TCP/IP, RS485 Ürün büyüklüğü 1400*200*1000mm
Yön tek veya çift yönlü (isteğe bağlı) Zamanı Yeniden Yapıştır 10 saniye
Koşmak Hayat 3 milyon Çalışma ortamı -10 ℃ ~ 70 ℃
Sürücü motoru DC24V fırça motoru
Vurgulamak

IP54 Rated Swing Barrier Gate

,

0.6 Second Sliding Speed Swing Barrier Gate

,

35-40 Persons/Minute Swing Barrier Gate
Mesaj bırakın
Ürün Açıklaması
Fast Speed Lane Crowd Control Sliding Swing Turnstiles Gate
High-performance sliding swing turnstiles designed for efficient crowd control in various public and commercial spaces. Features rapid operation, durable construction, and flexible configuration options.
Applications
Public Spaces:
  • Lobby entries, Subways, Airports, Stations
  • Libraries, Bookstores, Parks, Exhibition halls
  • Stadiums, Museums, Apartments, Residential Areas
  • Offices, Commercial buildings
Entertainment Venues:
  • Movie theaters, Fitness centers, Country clubs
  • Fairgrounds, Clubs, Swimming pools, Gyms
Business Organizations:
  • Hotels, Factories, Banks, Prisons
  • Hospitals, Schools, Enterprise entrances
Application Examples

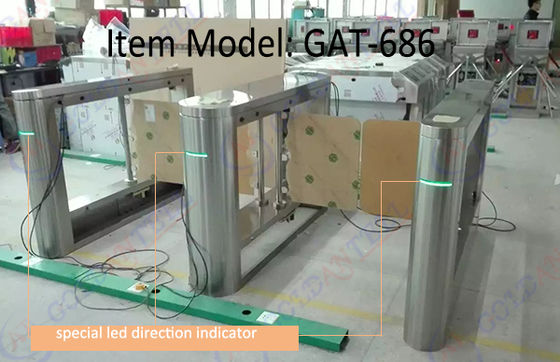

Single Lane Configuration
IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate 0

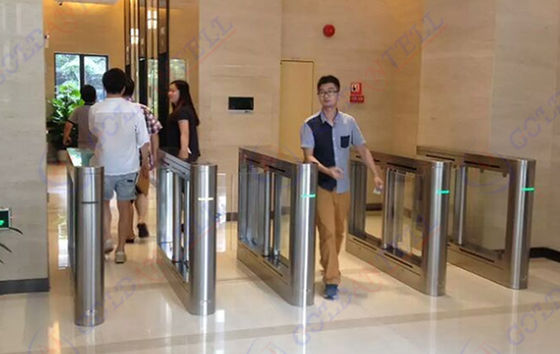

Multiple Lane Configuration (2, 3, 4 or more channels)
IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate 1
Technical Specifications
Product Model GAT-660
Product Size 1400*200*1000mm
Path Width 600mm or 900mm (per pair)
Direction Single or bi-directional (optional)
Operation Speed 0.6 second opening/closing time
Passage Rate 40 persons/min (open), 25-30 persons/min (closed)
Reset Time 10 seconds after breakdown
Service Life 3 million cycles
Operating Environment Indoor/outdoor (with cover) -10℃~70℃
Drive Motor DC24V brush motor
Key Features
  • Directional LED optical signals (Green Arrow/RED Cross indicators)
  • Fault self-check and alarm functions for easy maintenance
  • Specially processed mechanism for enhanced durability
  • Always open or close modes with automatic retraction during fire alarms
  • Ensures rapid, efficient and safe access control
  • Compatible with various access systems (Magnetic card, Barcode, ID card, IC card)
  • Standard photo-electric beams for all models

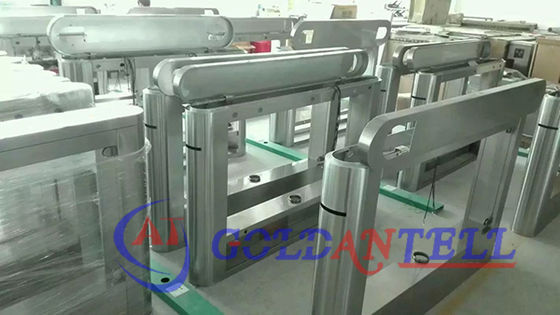

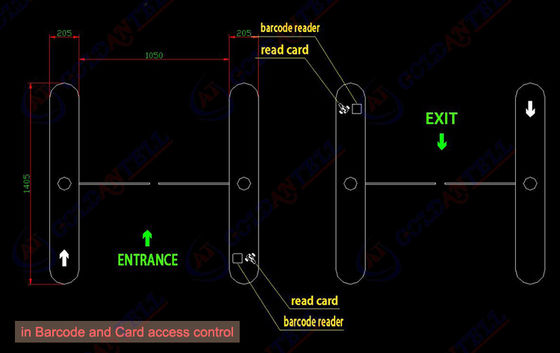

Product Dimensions
IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate 2
Product Classification
  • Vertical shape
  • Bridge shape (this model)
  • Pillar shape (tube type)
  • Single motor (for single/multiple passageways) or Double motors (for multiple passageways)

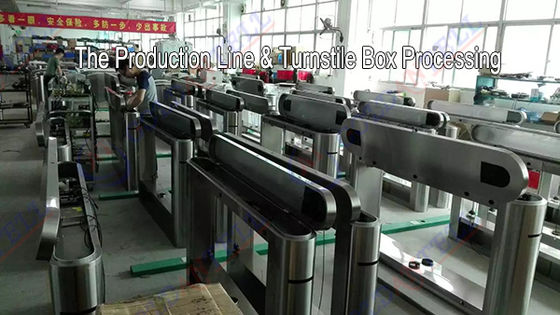

Professional Packaging
IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate 3

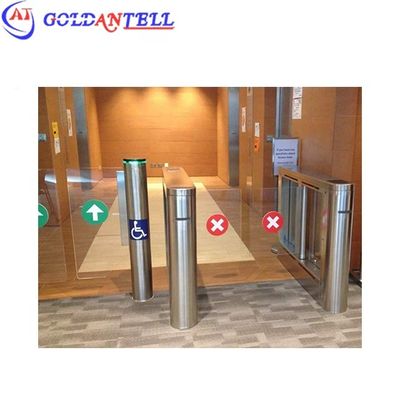

Certification
IP54 Rated Swing Barrier Gate with 0.6 Second Sliding Speed and 35-40 Persons/Minute Flow Rate 4
Note: All specifications and features are subject to change without notice. Contact us for the most current product information.
