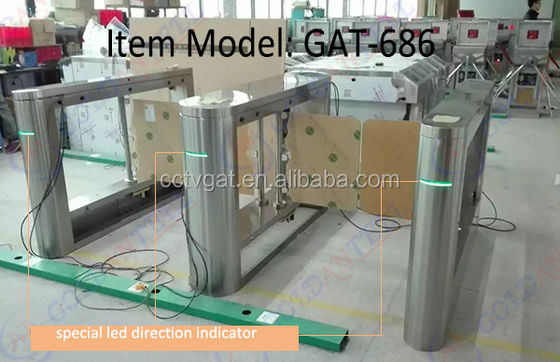

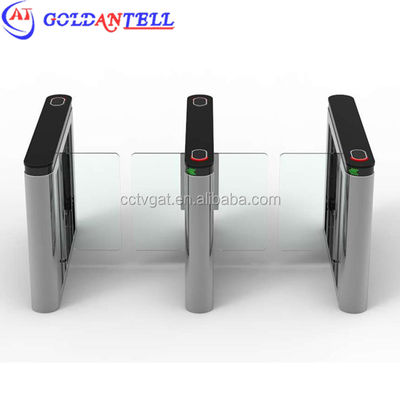

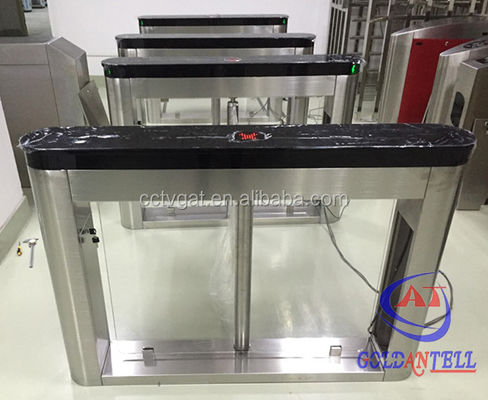

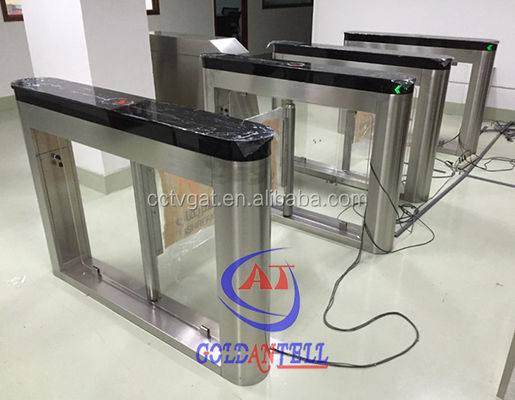

High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate

Menşe yeri Guangdong, Çin
Marka adı Goldantell
Model numarası GAT-686
Min sipariş miktarı 2
Fiyat $1,164

Ücretsiz numuneler ve kuponlar için bana ulaşın.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Erişim Kontrol Türü RFID kartı, QR kodu Bariyer açık zamanı 0,2 sn
İletişim arayüzü RS-232, TCP/IP, Rs485 Çalışma yönü 2 yönlü
bariyer motoru Fırçasız motor Malzeme Paslanmaz çelik, 304, 316 paslanmaz çelik
Koruma seviyesi IP54 Kayma hızı 0,6 Saniye
Güç kaynağı AC 100-240Volt şerit genişliği 60cm, 90cm (özel 90 ~ 120cm)
Akış hızı Dakikada 35-40 kişi Boyut 1400 * 200 * 1000 mm
kanat malzemesi Akrilik Zamanı Yeniden Yapıştır 10 saniye
Çalışma sıcaklığı -10°C ~ 70°C
Vurgulamak

0.6s Sliding Speed Swing Turnstile Gate

,

IP54 Protection Access Control Turnstile

,

35-40 Persons/Minute Security Turnstile

Mesaj bırakın
Ürün Açıklaması
2D Barcode Ticket System Gate with RFID Card Swipe Turnstile
Product Description

High-performance swing access control turnstile for marine parks and secure facilities, compatible with 2D barcode tickets, QR codes, and RFID card systems.

Applications

Access Width: Within 900mm space for comfortable pedestrian passage

  • Public Places: Lobby entries, subways, airports, stations, libraries, parks, exhibition halls, stadiums, museums, apartments, offices, and commercial buildings
  • Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, clubs, swimming pools, and gyms
  • Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, and enterprise entrance/exit attendance systems
High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 0 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 1
Technical Specifications
Type High speed gate & full automatic Swing Turnstile
Product Model GAT-686
Product Size 1400×200×1000mm

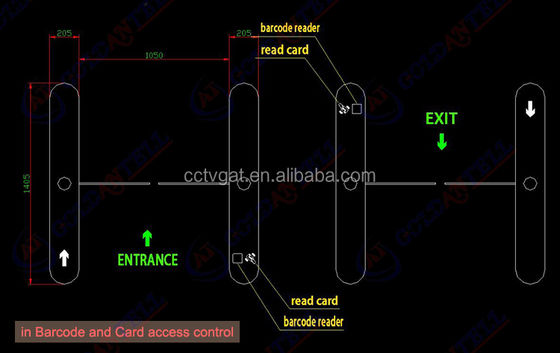

Path width Within 900mm (for one pair)
Direction Single or bi-directional (optional)
Time of opening/closing 0.6 second
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down 10 seconds
Normal running life 3 million cycles
Working environment Indoor/outdoor (with shelter) -10℃~70℃
Drive motor DC24V brush motor
Key Features
  • Self-diagnostic and alarm functions for easy maintenance
  • Programmable operation status via control board
  • Anti-pinch safety protection
  • Visual and audible alarms for unauthorized access
  • Automatic locking until receiving opening signal
  • Adjustable door synchronization
  • Automatic reset function with adjustable timing
  • Optional LCD information display
  • Audible operation prompts
Construction & Materials
  • 304 stainless steel construction
  • IP54 waterproof rating
  • Elegant, anti-rust design
  • CE Certified
  • Fail-safe operation (opens when power is off)
  • Compatible with multiple access control systems (RFID, fingerprint, QR/barcode, ESD)
High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 2 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 3
Customization Options

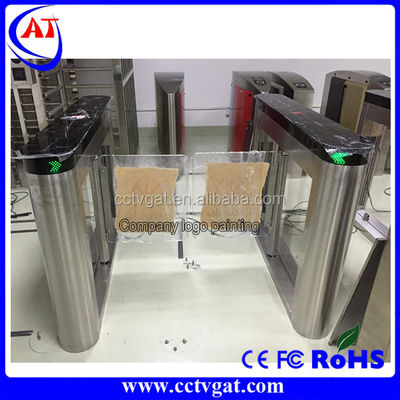

  • Company logo printing
  • Custom dimensions and shapes
  • Optional LED indicators and LCD displays
  • Special color configurations
Company Information

Shenzhen Goldantell Technologies Co., Ltd is a leading manufacturer of intelligent turnstiles and parking management systems with over 8 years of industry experience. Our products are exported to more than 50 countries worldwide.

High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 4 High-Speed Swing Turnstile Gate with 0.6s Sliding Speed IP54 Protection and 35-40 Persons/Minute Flow Rate 5
